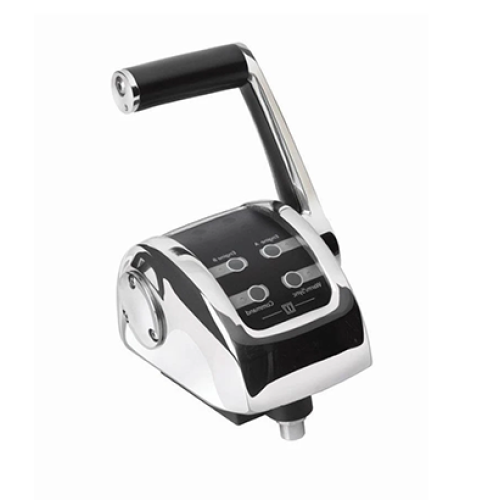

Engine control lever, right side for 1 engine
SKU: EC4H1R
The electronic engine remote control implements mechanical and electronic solutions with mechanical movement transmitted to digital communication tech-
nology and returned to mechanical movement over any distance up to 80 metres. It only takes a few seperately supplied devices to complete an electronic engine remote control:
• Command stations
• Actuators
• Data communication cables which connect the Command Stations to the Actuators
This new high quality
electronic engine control lever is suitable for both motor and sailing
yachts. Made from high grade stainless steel, it is equipped with the
latest technology and the following features: Easy installation and configuration Casing in hand-polished stainless steel (AISI 316) Communication via CANbus protocol Suitable for mechanically controlled engines Suitable for combination mechanical/electronic engine control. Suitable for fully electronic engine control Suitable for mechanical or hydraulic gearboxes and stern drives Suitable for operating 1 or 2 engines Waterproof (IP67) Multiple helm station possibilities Identical controls at all helm stations Optional trolling valve control Optional trim tab or bow thruster control Meets the EMC requirements
| Control Dimensions | |
| Single/Twin Lever | Single |
| Mounting | Top |
| Mechanical/Electrical | Electronic |
| Material housing | Stainless steel (AISI 316) |
| Material handles | Stainless steel (AISI 316) and plastic cover |
| Length (mm) | 151 (base only) |
| Height (mm) | 161 (base only) |
| Mechanism depth (mm) | 40 (through hole) |
| Width (mm) | 140 (base) |
| Handle length from centre (mm) | 114 |
Engine control lever, right side for 1 engine
- Brand: Vetus
- Product Code: EC4H1R
- Availability: In Stock
