Jabsco Par-Max Series marine freshwater delivery pumps
Heavy Duty Model
Featuring:
- Par-Max range - accommodating flows from 1 GPM (3.8 LPM) to 6 GPM (22.7 LPM)
- Co-molded diaphragm technology ensures long life and durability
- Heavy duty (HD) models feature motors and cast aluminum lower housings for longer life even at high pressures
- Efficient and quiet operation and no vibration thanks to dampening mounting feet
- Integrated, sealed pressure switch for on-demand operation
- Versatile installation thanks to its self-priming capability
- Running dry without damage
- Quick-connect ports make for easy installation and servicing
- Reduced cycling and smoother flow thanks to integrated bypass module
Q401J-112S-3A Jabsco Par-Max 4HD Freshwater Pump Replaces 31620-00292, 32600-0092, 82400-0392, 82500-0392, 82600-0392
| Pump Specifications | |
| Open Flow Rate | 4 GPM (15.1 LPM) |
| Voltage | 12 VDC |
| Maximum Amps Draw | 8 Amps |
| Pressure in PSI | 25 PSI |
| Strainer Type | Inline 40 mesh |
| Hose Connection | 2 x 1/2" Straight Barbs |
| Dry Self-Priming Height | 2.4 m |
| Overall Dimensions | 239mm long x 97mm high x 104mm wide |
| Mounting Dimentions | Footprint/Mounting Length 51mm (centers) - Footprint/Mounting Width 91mm (centers) - |

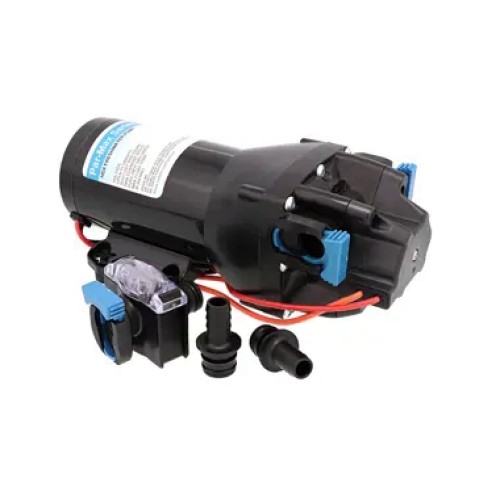

Jabsco Par-Max 4HD Freshwater Pump 12 Volt 25psi
- Brand: Jabsco
- Product Code: Q401J-112S-3A
- Availability: 2-3 Days
