• Jabsco Heavy Duty Blower 24 Volt Flangemount

Jabsco Heavy Duty Blowers For Onboard Ventilation

For Continuous Use Applications

Jabsco Ventilation Blowers are designed to remove fumes from the engine compartments of gasoline powered boats prior to start-up, and therefore conform to:

  • ISO 8846 MARINE and USCG Regulations for ignition protection
  • N.M.M.A. type accepted
  • ISO 11105 MARINE
  • EN60945 and CE/UKCA (EU models)


Jabsco Ventilation Blowers can also be used for air intake or extraction in galleys, bilges, accommodation, and head compartments. Blowers should not be installed close to sources of direct heat exceeding 180°F (55°C).


Jabsco Ventilation Blowers are available in flangemount and flexmount configurations in either standard or heavy-duty models.

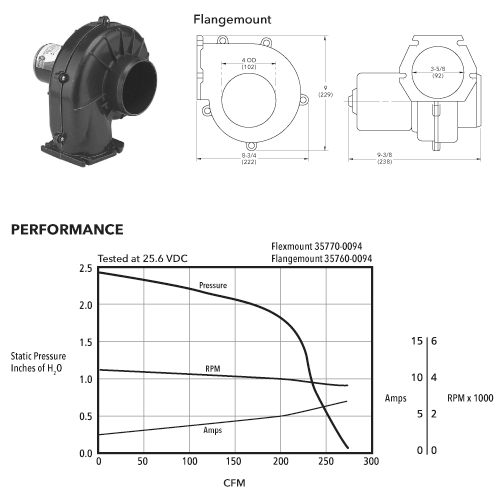

    Extractor Specifications
    Body Materials Tough thermoset plastic housing
    Flow Rate 250 CFM (7,0 m³/min)
    Voltage 24 VDC
    Fuse Size 10 (amp)
    Amp Draw 6 (amp)
    Dimensions 222 x 229 x 238(mm)
    Vent Diameter 4" (102 mm) Ducting

    Jabsco Heavy Duty Blower 24 Volt Flangemount

    • Brand: Rule
    • Product Code: 35760-0094
    • Availability: 2-3 Days
