Jabsco Heavy Duty Blowers For Onboard Ventilation
For Continuous Use Applications
Jabsco Ventilation Blowers are designed to remove fumes from the engine compartments of gasoline powered boats prior to start-up, and therefore conform to:
- ISO 8846 MARINE and USCG Regulations for ignition protection
- N.M.M.A. type accepted
- ISO 11105 MARINE
- EN60945 and CE/UKCA (EU models)
Jabsco Ventilation Blowers can also be used for air intake or extraction in galleys, bilges, accommodation, and head compartments. Blowers should not be installed close to sources of direct heat exceeding 180°F (55°C).
Jabsco Ventilation Blowers are available in flangemount and flexmount configurations in either standard or heavy-duty models.

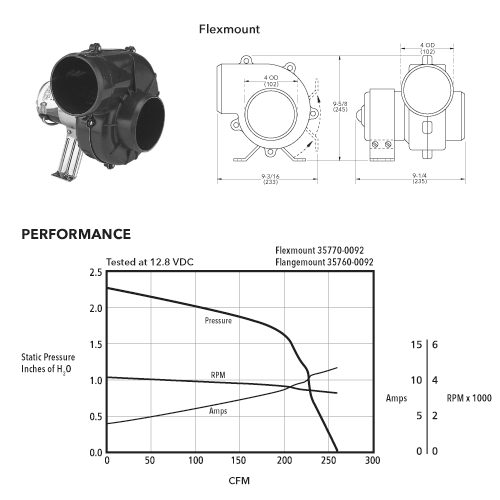

| Extractor Specifications | |
| Body Materials | Tough thermoset plastic housing |
| Flow Rate | 250 CFM (7,0 m³/min) |
| Voltage | 12 VDC |
| Fuse Size | 15 (amp) |
| Amp Draw | 11 (amp) |
| Dimensions | 222 x 229 x 238(mm) |
| Vent Diameter | 4" (102 mm) Ducting |
Jabsco Heavy Duty Blower 12 Volt Flexmount
- Brand: Rule
- Product Code: 35770-0092
- Availability: 2-3 Days
